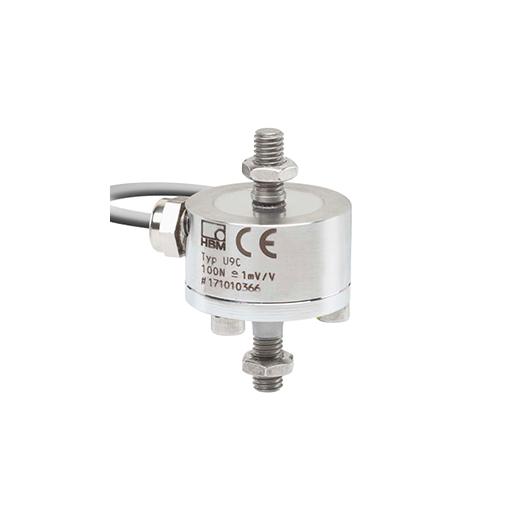

The U9C force transducer can be used to measure static and dynamic tensile and compressive force. Nominal forces ranging from 50 N to 50 kN are available as well as variable cable lengths and, on request, TEDS (Transducer Electronic Data Sheet).

The U9C tensile and compressive force transducer is mechanically and electrically compatible with its predecessor model and can easily be installedin existing systems. Its extremely compact design further facilitates the integration.

Providing 0.2 accuracy, the U9C offers higher precision than its predecessor. The transducer is based on leading-edge strain gauge technology. Force is applied via a special load application point. Knuckle eyes are available, if needed.

Moreover, the U9C force transducer offers IP67 protection. Precise measurement results are guaranteed even in adverse environments thanks to thehermetically sealed housing from stainless steel and the extremely thin and rugged cable.

Compact, precise, rugged – these characteristics make the U9C highly versatile. Possible fields of application include:

  • Cost-effective test benches for a wide range of applications
  • Control and monitoring of production processes
  • Measurement tasks in development, when other sensors are too big, e.g. for measuring braking forces directly in the brake caliper
Kategoriler:

Açıklama

Furthermore, the tensile force transducer adapts to the application – cable lengths and connectors are variable. If a plug version is selected, U9C can also be fitted with TEDS. The sensor’s identification number will be automatically detected and the amplifier automatically configured.

Title Description Date Version Size Related Documents
CE-Certificate 065 Deutsch, English 352 KB
U9C Caractéristiques techniques Français 107 KB
U9C Datenblatt Datenblatt des Kraftaufnehmers U9C (Deutsch) 108 KB
U9C Data Sheet Data Sheet of the U9C Force Sensor (English) 107 KB
U9C Mounting instructions Mounting Instructions, Montageanleitung, Notice de montage, Istruzioni per il montaggio (English, Deutsch, Français, Italiano) 504 KB
U9C Prospetto dati Italiano 107 KB
U9C Data Sheet (Japanese) Japanese Data Sheet of U9C Force Sensor 329 KB
