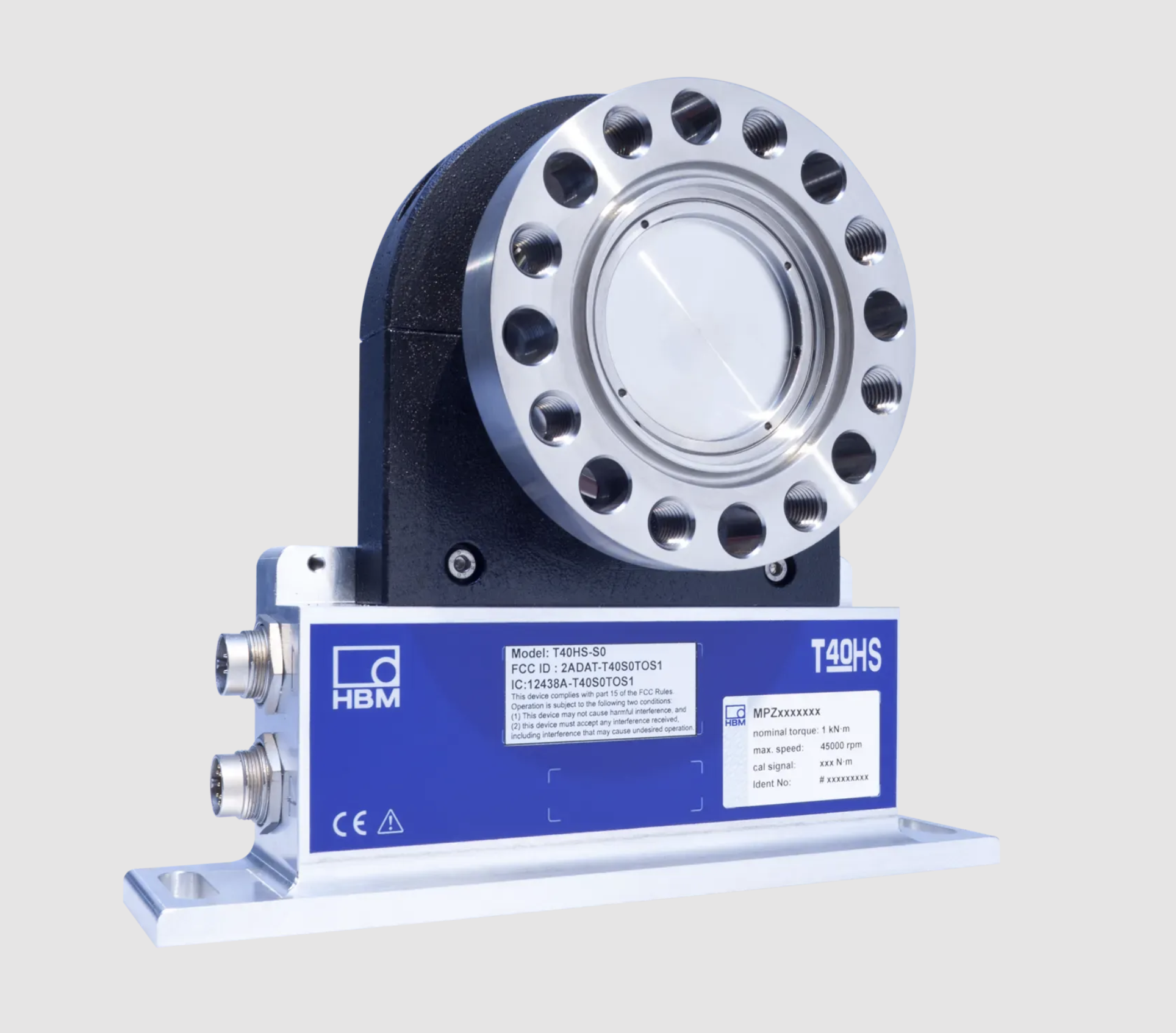

T40HS: Minimizing Measurement Uncertainty in High-Speed Applications

T40HS is the space and cost saving torque transducer for your high-speed application up to 45,000 rpm. T40HS is characterized by its short design and offers high stiffness and precision thus allowing for a low measurement uncertainty when testing high-speed propulsion systems, turbines, transmission test rigs, adjustable actuators or the efficiency of complete drive trains. Due to its lightweight titanium body, the high-speed torque sensor has a low moment of inertia. This results in a lower torque during acceleration and reduced bearing load. You thus increase the lifetime of your propulsion system. The perfect solution for motorsport engine or aerospace applications.

  • HBM accuracy class: 0.05
  • Rotational speed: up to 45,000 RPM
  • Nominal (rated) torque: 100 Nm to 3 kNm
Kategoriler:

Açıklama

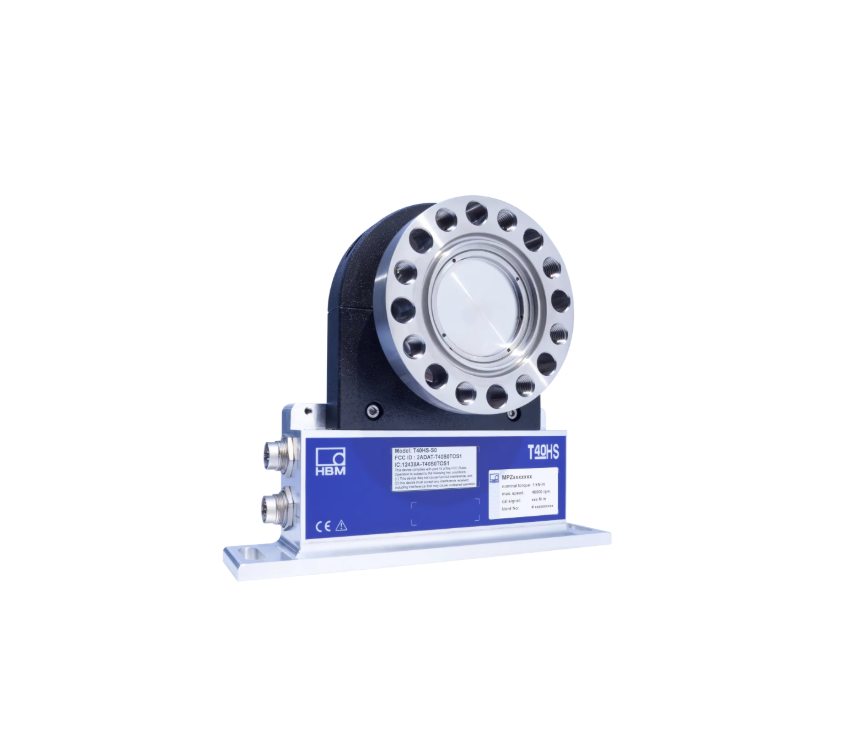

T40HS High-Speed Torque Transducer with Smaller Measuring Ranges

The lightweight torque transducer T40HS is now also available with a nominal (rated) measuring range starting at only 100 Nm at a guaranteed accuracy class of 0.05, whilst offering facilitating rotational speeds up to 45,000 RPM.

The lower measuring range of T40HS is especially beneficial while testing high-speed energy recovery systems, electrical drives, propulsion systems, turbines, transmission test rigs, adjustable actuators, or the efficiency of complete drive trains.

Precise

  • Accuracy class: 0.05
  • Minimal non-linearity, small hysteresis and excellent repeatability
  • TC0 of only 0.05 % /10 K

Ruggedized

  • Compact design
  • High stiffness
  • Low moment of inertia
  • Rotational speed up to 45,000 rpm
  • Lightweight titanium body
  • EMC, FCC and IC compliant

Reliable

  • Simple installation
  • Proven reliability and mechanical stability
  • Regulatory approvals granted
  • Redundant output optionally available
  • Custom designs available
