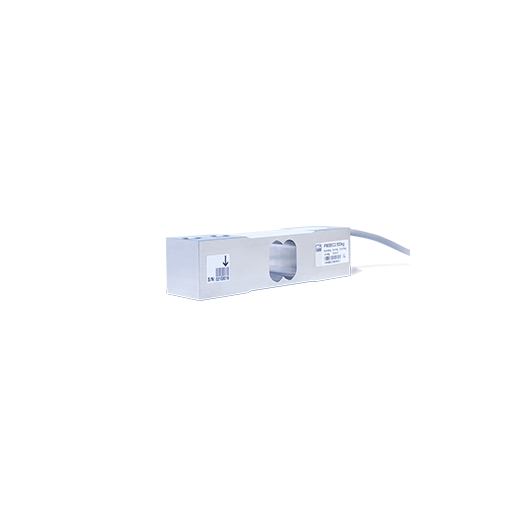

Due to its design, the rugged PWSE single point load cell with high maximum capacity is suited for use with large platforms as well.

PWSE is available for maximum capacities ranging from 100 to 750 kg. Using innovative PEEK strain-gauge technology, this single point load cell, in combination with the tried and tested silicone rubber cover offers significantly higher stability against moisture than other types. PWSE complies with the IP67 degree of protection.

The load cell can be used with platform sizes up to 600 x 800 mm thanks to the rugged design of its measuring body geometry. PWSE is made of highly resistant stainless steel and is corrosion proof even in harsh environments. Hence, the load cell is also suited for scales used in the chemical and food production industry.

Kategoriler:

Açıklama

The PWSE single point load cell can be used universally thanks to its rugged design. Reliable table-top, floor and conveyor scales can be implemented. In addition to its use in conventional scales that are also legal for trade, PWSE is ideally suited for integration as a weighing sensor into production systems. Users benefit from ruggedness and reliability and, furthermore, from an excellent price-to-performance ratio and easy load cell installation.

Title Description Date Version Size Related Documents
Data Sheet 259 KB
Mounting instructions 242 KB
Data Sheet 93 KB
Data Sheet 95 KB
OIML Certificate of conformity 696 KB
Test certificate 1 MB
CE-Certificate 297 449 KB
EU Declaration of Conformity Deutsch, English 427 KB
Safety Instructions nA/tc Safety Instructions (English, Deutsch, Français, Italiano, Español, Português) 3 MB
Safety Instructions zone 1/21-Ex i Safety Instructions (English, Deutsch, Français, Italiano, Español, Português) 3 MB

Key features PWSE

  • Protection degree IP67
  • Stainless steel
  • Measurement range: 100 – 750 kg
  • Platform size: 600 x 800 mm
  • Accuracy class C3MR
