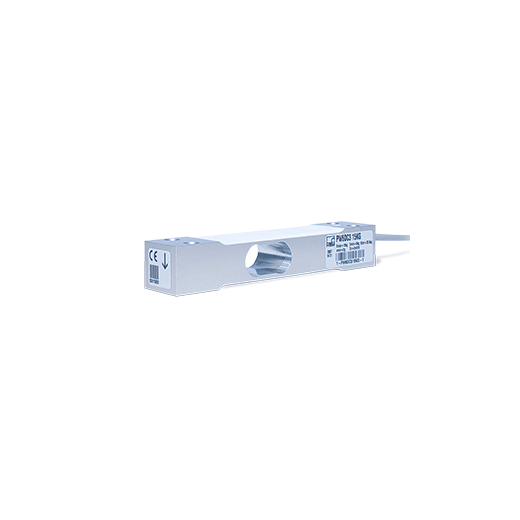

PW6D Single Point Load Cell for dynamic applications

Small displacement, high natural frequency: The PW6D single point load cell is the right choice for dynamic weighing. It was developed particularly forextremely high weighing speeds. PW6D is a worldwide unique load cell because of its small nominal (rated) displacement for an extremely high natural frequency.

The maximum platform size is 300×300 mm. The base version’s shielded 4-wire connection cable is 350 mm long and intended for use in compact weighing units. In addition to the standard version, HBM offers more optional add-ons for this load cell, for example, longer cables (up to 6 m), an adjusted output or a reduced minimum load cell verification interval (vmin) for multi-range applications.

Kategoriler:

Açıklama

Special Features

  • Accuracy class C3, C3MR with OIML R60 test report
  • Max. capacities PW6D: 3 kg, 5 kg, 10 kg, 15 kg, 20 kg, 30 kg, 40 kg
  • Off center load compensated (OIML R76)
  • Protection class IP67 (acc. to EN 60 529)
  • Shielded connection cable
  • Material: Aluminum
  • Optimized for dynamic weighing applications

Optional

  • Connection cable in 6 wire configuration
  • Different cable lengths
  • Aligned output, suitable for connection in parallel

Related products

PW2D- Single point load cell for dynamic applications, max platform size 380x380mm

Order Numbers

1-PW6DC3/3KG-1
1-PW6DC3/5KG-1
1-PW6DC3/10KG-1
1-PW6DC3/15KG-1
1-PW6DC3/20KG-1
1-PW6DC3/30KG-1
1-PW6DC3/40KG-1
