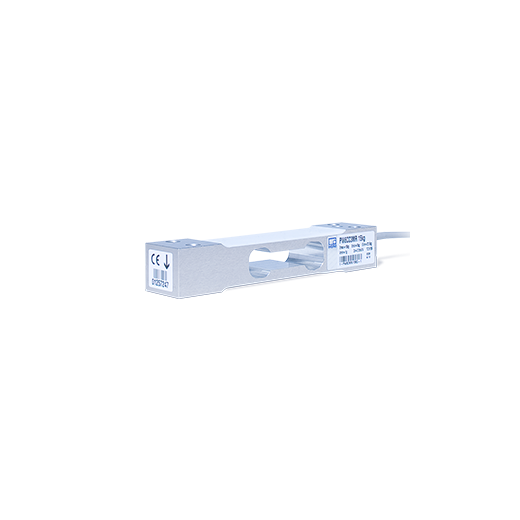

PW6C Single Point Load Cell

The robust PW6C single point load cell is ideally suited for use in static applications. For example in:

  • Shop-counter scales
  • Conveyor scales
  • Platform scales with only one load cell

PW6C provides both high accuracy and a small temperature coefficient for multi-range applications. Its extended nominal (rated) displacement enables scale overload stops to be easily adjusted.

The maximum platform size is 300×300 mm. The base version’s shielded 4-wire connection cable is 350 mm long and intended for use in compact weighing units. In addition to the standard version, HBM offers more add-on options for this load cell, for example, longer cables (up to 6 m) or an adjusted output.

Kategoriler:

Açıklama

Special Features

  • Accuracy class C3, C3MR with OIML R60 test report, Optional C6 accurency!
  • Max. capacities PW6C: 3 kg, 5 kg, 10 kg, 15 kg, 20 kg, 30 kg, 40 kg
  • Off center load compensated (OIML R76)
  • Protection class IP67 (acc. to EN 60 529)
  • Shielded connection cable
  • Material: Aluminum
  • Optimized for static weighing applications

Optional



Title Description Date Version Size Related Documents
Data Sheet 165 KB
Data Sheet 166 KB
Data Sheet 167 KB
Mounting instructions 175 KB
Mounting instructions 298 KB
CE-Declaration of Conformity (EMC) 486 KB
Data Sheet 320 KB

Order Numbers

1-PW6CMR/3KG-1
1-PW6CMR/5KG-1
1-PW6CMR/10KG-1
1-PW6CMR/15KG-1
1-PW6CMR/20KG-1
1-PW6CMR/30KG-1
1-PW6CMR/40KG-1
