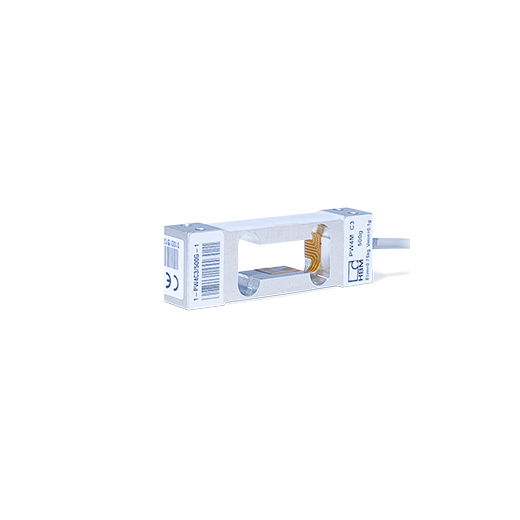

The aluminium single point load cell PW4M, is designed especially for small nominal loads. The very small temperature coefficient means very high accuracy. The maximum platform size is 200x200mm, the electrical connection is via a 1,5m connection cable.

  • Small size
  • For determining small masses
  • Accuracy class C3 with OIML R60 test report
  • Off center load compensated
  • Degree of protection IP65 according to IEC 529
  • According to IEC 529
  • Max. capacities: 0.3 kg, 0.5 kg, 2 kg, 3 kg
  • Shielded connection cable
  • Material: Aluminum
Kategoriler:

Açıklama

Title Description Date Version Size Related Documents
Data Sheet 144 KB
Data Sheet 104 KB
Data Sheet 143 KB
Mounting instructions 249 KB
Test certificate 824 KB
zc0207 151 KB
Data Sheet 281 KB

Order Numbers

1-PW4C3/300G-1
1-PW4C3/500G-1
1-PW4C3/2KG-1
1-PW4C3/3KG-1
