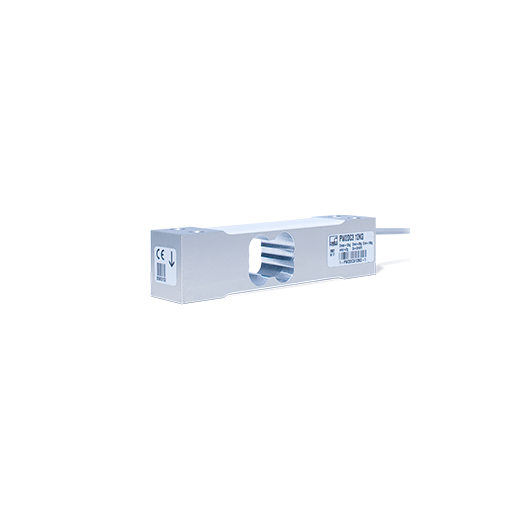

Small displacement, high natural frequency: The PW2D single point load cell is the right choice for dynamic weighing. It was developed particularly forextremely high weighing speeds. PW2D is a worldwide unique load cell because of its small nominal (rated) displacement for an extremely high natural frequency.

The maximum platform size is 380×380 mm (PW2D). The base version’s shielded 4-wire connection cable is 350 mm long and intended for use in compact weighing units. In addition to the standard version, HBM offers more optional add-ons for this load cell, for example, longer cables (up to 6 m), an adjusted output or a reduced minimum load cell verification interval (vmin) for multi-range applications.

Kategoriler:

Açıklama

Special Features

  • Accuracy class C3, C3MR with OIML R60 test report
  • Max. capacities PW2D: 7.2 kg, 12 kg, 18 kg, 36 kg, 72 kg
  • Off center load compensated (OIML R76)
  • Protection class IP67 (acc. to EN 60 529)
  • Shielded connection cable
  • Material: Aluminum
  • Optimized for dynamic weighing applications

Optional

  • Connection cable in 6 wire configuration
  • Different cable lengths
  • Aligned output, suitable for connection in parallel
Title Description Date Version Size Related Documents
Data Sheet 150 KB
Data Sheet 169 KB
Data Sheet 152 KB
Test certificate 731 KB
zc0152 125 KB
Mounting instructions 285 KB
Data Sheet 292 KB

Order Numbers

1-PW2DC3/7.2KG-1
1-PW2DC3/12KG-1
1-PW2DC3/18KG-1
1-PW2DC3/36KG-1
1-PW2DC3/72KG-1
