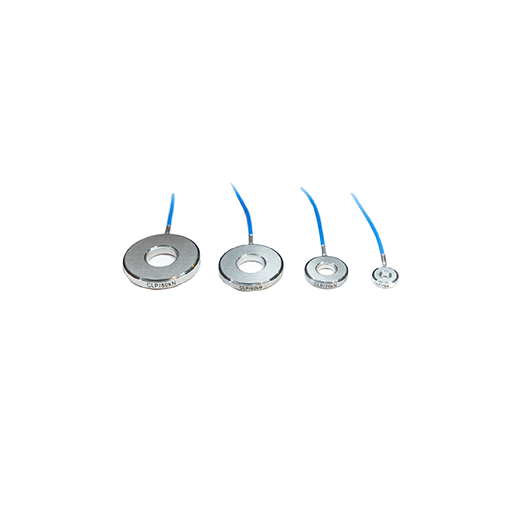

PACEline CLP Kuvvet Sensörü [7kN … 62kN]

Açıklama

Accessories and Cables

Accessories

CSB4/1 summing box

Simplify the installation of piezoelectric sensors. The CSB4/1 summing box enables up to four piezoelectric sensors to be connected in parallel to an amplifier input. It can be fastened with screws and features electrical isolation of enclosure and sensor shielding.

CSB4/1 – Data sheet

CSB4/1 – Operating manual

Cables

All cables for piezoelectric transducers from HBM are particularly noise-free and can be used over the sensors’ entire temperature range.

The main specifications at a glance:

• Temperature range: -55 to +200 degrees C
• Shielding: Semi-conducting intermediate layer, silver-coated copper braid
• Sheath: FPM
• Triboelectric noise: Maximum 1 pC
• Insulation at 20°C: 10¹⁴ ohms
• Impedance: 50 ± 5 ohms
• Outside diameter: 1.9 mm
• Bending radius: 10 mm
• Insulator: PTFE

Our range of accessories is constantly being extended and currently comprises the following cables:

1-CCO

• Adapter for connecting two cables with 10-32UNF connector
• Sockets at both ends
• For extending piezoelectric cables

1-KAB143

• Cable length: 2, 3 or 7 m
• 10-32 UNF plug on both sides
• Suitable for all sensors with plug, CSB summing box and CMA amplifier

1-KAB145

• Cable length: 0,2 or 3 m
• 10-32 UNF plug on both sides, however, compared to 1-KAB143 with massive plug protection
• O-ring seal at sensor for extremely harsh conditions of use
• Suitable for all sensors with plug, CSB summing box and CMA amplifier

1-KAB176

• Cable length: 2 or 3 m
• One side with type 10-32 UNF plug, other cable side with BNC plug
• For connection of all sensors with plug, CSB summing box and CMD digital charge amplifier
