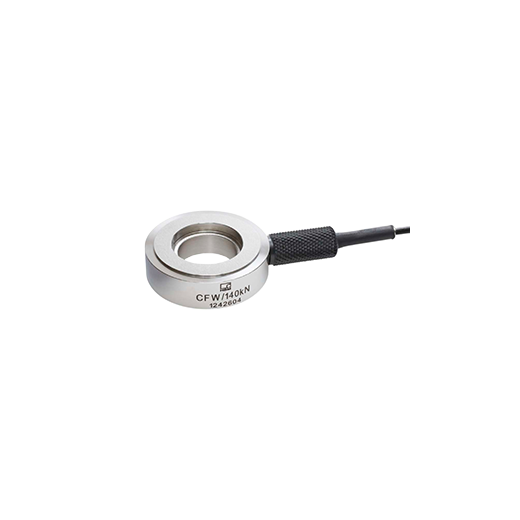

PACEline CFW is presently available with nominal (rated) forces of 20 kN, 50 kN, 100 kN, 140 kN, 190 kN, 330 kN and 700 kN. Since the output signal is not dependent on the measuring range but on the force applied, CFW force sensors withstand very high overloads. Hence, CFW allows for over-dimensioning without loss of accuracy and resolution.
Cross section through the CFW force washer: The symmetrical design ensures excellent linearity.
* not available for the 20kN version
Mounting aid for Force washer
Piezoelectric force washers require pre-stressing. The new CPS sets of pre-stressing elements facilitate easy and permanent pre-stressing. They are made from stainless steel and offer the required hardness as well as the bolt pitches selected to match the typical pre-stressing force.
A set of pre-stressing elements includes a bolt, a washer and a nut. The figure below gives a schematic representation of the setup.
Accessories and Cables
Accessories
CSB4/1 summing box
Simplify the installation of piezoelectric sensors. The CSB4/1 summing box enables up to four piezoelectric sensors to be connected in parallel to an amplifier input. It can be fastened with screws and features electrical isolation of enclosure and sensor shielding.
CSB4/1 – Operating manual
Cables
All cables for piezoelectric transducers from HBM are particularly noise-free and can be used over the sensors’ entire temperature range.
The main specifications at a glance:
- Temperature range: -55 to +200 degrees C
- Shielding: Semi-conducting intermediate layer, silver-coated copper braid
- Sheath: FPM
- Triboelectric noise: Maximum 1 pC
- Insulation at 20°C: 1014 ohms
- Impedance: 50 ± 5 ohms
- Outside diameter: 1.9 mm
- Bending radius: 10 mm
- Insulator: PTFE
Our range of accessories is constantly being extended and currently comprises the following cables:
1-CCO
- Adapter for connecting two cables with 10-32UNF connector
- Sockets at both ends
- For extending piezoelectric cables
1-KAB143
- Cable length: 2, 3 or 7 m
- 10-32 UNF plug on both sides
- Suitable for all sensors with plug, CSB summing box and CMA amplifier
1-KAB145
- Cable length: 0,2 or 3 m
- 10-32 UNF plug on both sides, however, compared to 1-KAB143 with massive plug protection
- O-ring seal at sensor for extremely harsh conditions of use
- Suitable for all sensors with plug, CSB summing box and CMA amplifier
1-KAB176
- Cable length: 2 or 3 m
- One side with type 10-32 UNF plug, other cable side with BNC plug
- For connection of all sensors with plug, CSB summing box and CMD digital charge amplifier
| Title | Description | Date | Version | Size | Related Documents |
|---|---|---|---|---|---|
| FACEline CMC Datenblatt | Datenblatt von der Kraftmesskette FACEline CMC (Deutsch) | 163 KB | |||
| PACEline CMC Data Sheet | Data Sheet of the U10M force measurement chain (English) | 165 KB | |||
| a2319 | 618 KB | ||||
| Brochure | English | 643 KB | |||
| PACEline CMC Prospetto dati | Italiano | 191 KB | |||
| Data Sheet | 163 KB | ||||
| Brochure | Deutsch | 949 KB | |||
| Brochure | Italiano | 650 KB | |||
| Operating Manual | 550 KB | ||||
| Data Sheet | 231 KB | ||||
| Brochure | Japanese | 773 KB | |||
| KAB143, KAB145, KAB176 Data Sheet | Data Sheet of the KAB143, KAB145, KAB176 Charge Cable (English) | 179 KB | |||
| KAB143, KAB145, KAB176 Prospetto dati | Italiano | 180 KB | |||
| KAB143, KAB145, KAB176 Datenblatt | Datenblatt vom Ladungskabel KAB143, KAB145, KAB176 (Deutsch) | 180 KB | |||
| KAB143, KAB145, KAB176 Caractéristiques techniques | Français | 179 KB |
