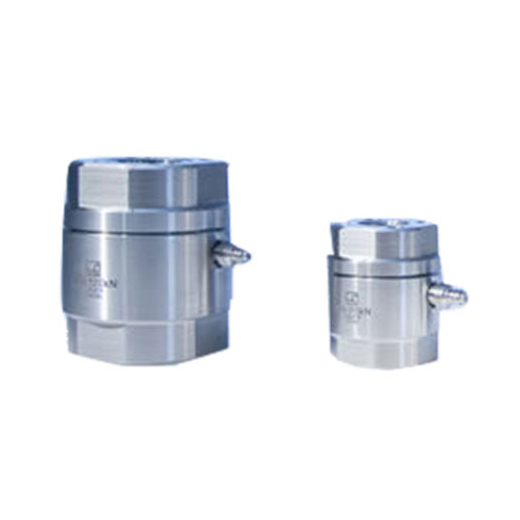

CFT piezoelectric force transducers from HBM are available with measuring ranges from 5 to 120 kN enabling reliable, integrated force measurement, in particular where space is a constraint.

The transducers are suitable for monitoring highly dynamic press-fit and assembly processes with fast force variations. As part of the PACEline force measurement chain, CFT transducers can be used where uncalibrated force washers only could be used so far.

Minimal dimensions, absolute reliability: 97% less space required

The size of PACEline CFT piezoelectric force transducers is only 3% of the size of transducers using other sensor technologies. The very compact format however does not negatively affect reliability. CFT transducers measure over several intervals (decades) at consistent accuracy.

More benefits provided by PACEline CFT force transducers include high stiffness and rugged design required in particular for use in adverse industry environments. Thanks to the flange connection on both sides and a central bore, PACEline CFT force transducers can moreover be easily and quickly integrated into existing systems.

PACEline CFT force transducers are also available as CMC measurement chain including cable and charge amplifier.

Kategoriler: , ,

Açıklama

Accessories and Cables

Accessories

CSB4/1 summing box

Simplify the installation of piezoelectric sensors. The CSB4/1 summing box enables up to four piezoelectric sensors to be connected in parallel to an amplifier input. It can be fastened with screws and features electrical isolation of enclosure and sensor shielding.

CSB4/1 – Data sheet

CSB4/1 – Operating manual

Cables

All cables for piezoelectric transducers from HBM are particularly noise-free and can be used over the sensors’ entire temperature range.

The main specifications at a glance:

  • Temperature range: -55 to +200 degrees C
  • Shielding: Semi-conducting intermediate layer, silver-coated copper braid
  • Sheath: FPM
  • Triboelectric noise: Maximum 1 pC
  • Insulation at 20°C: 1014 ohms
  • Impedance: 50 ± 5 ohms
  • Outside diameter: 1.9 mm
  • Bending radius: 10 mm
  • Insulator: PTFE

Our range of accessories is constantly being extended and currently comprises the following cables:

1-CCO

  • Adapter for connecting two cables with 10-32UNF connector
  • Sockets at both ends
  • For extending piezoelectric cables

1-KAB143

  • Cable length: 2, 3 or 7 m
  • 10-32 UNF plug on both sides
  • Suitable for all sensors with plug, CSB summing box and CMA amplifier

1-KAB145

  • Cable length: 0,2 or 3 m
  • 10-32 UNF plug on both sides, however, compared to 1-KAB143 with massive plug protection
  • O-ring seal at sensor for extremely harsh conditions of use
  • Suitable for all sensors with plug, CSB summing box and CMA amplifier

1-KAB176

  • Cable length: 2 or 3 m
  • One side with type 10-32 UNF plug, other cable side with BNC plug
  • For connection of all sensors with plug, CSB summing box and CMD digital charge amplifier
Title Description Date Version Size Related Documents
FACEline CMC Datenblatt Datenblatt von der Kraftmesskette FACEline CMC (Deutsch) 163 KB
PACEline CMC Data Sheet Data Sheet of the U10M force measurement chain (English) 165 KB
a2319 618 KB
Brochure English 643 KB
PACEline CMC Prospetto dati Italiano 191 KB
Data Sheet 163 KB
Brochure Deutsch 949 KB
Brochure Italiano 650 KB
Operating Manual 550 KB
Data Sheet 231 KB
Brochure Japanese 773 KB
KAB143, KAB145, KAB176 Data Sheet Data Sheet of the KAB143, KAB145, KAB176 Charge Cable (English) 179 KB
KAB143, KAB145, KAB176 Prospetto dati Italiano 180 KB
KAB143, KAB145, KAB176 Datenblatt Datenblatt vom Ladungskabel KAB143, KAB145, KAB176 (Deutsch) 180 KB
KAB143, KAB145, KAB176 Caractéristiques techniques Français 179 KB
