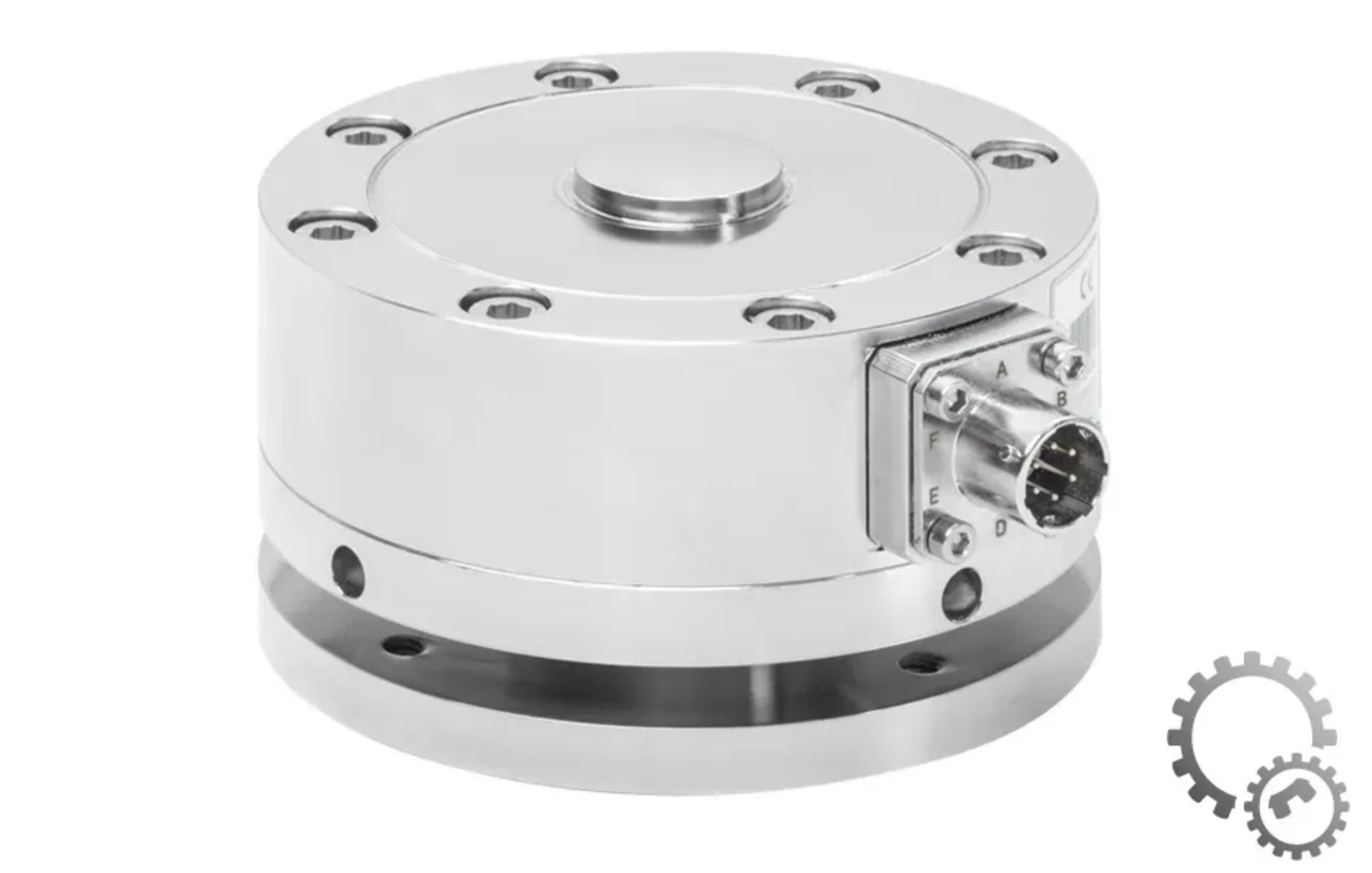

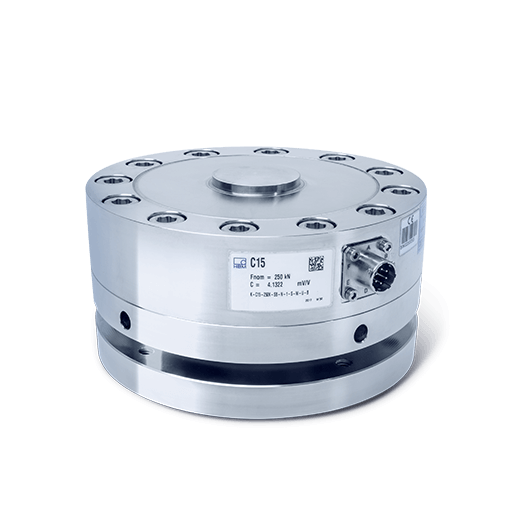

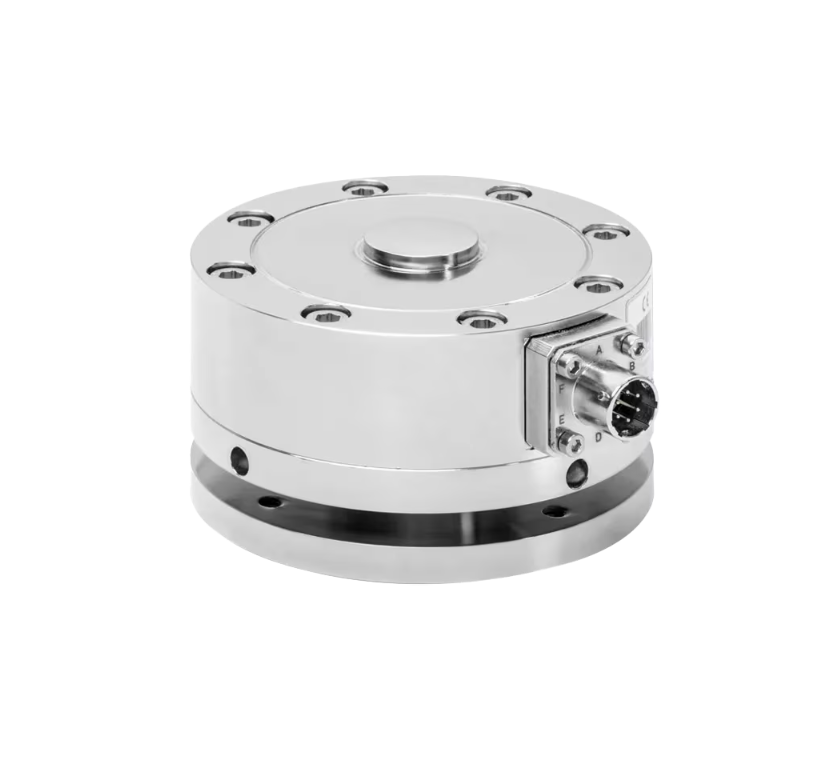

The C15 Reference Force Transducer Allows Calibration with Capacities from 2.5 kN to 1 MN
The C15 reference force transducer is a robust (EMC-tested, rustproof, impact and vibration-tested) shear-force transducer with nominal (rated) measuring ranges between 2.5 kN and 1 MN. The C15 meets the requirements of accuracy class 00 per ISO376 in an exceptionally wide measuring range from 10% to 100% of the respective capacity.
Thanks to the sensor’s very high output signal – more than 4 mV/V, with the versions featuring capacities of 25 kN and higher – the full measuring range of the amplifier can be utilized. This guarantees a high resolution and an exceptional signal-to-noise ratio.
- Accuracy class to ISO376: 00
- HBM accuracy class: 0.02…0.05
- Nominal (rated) measuring range: 2.5 kN…1 MN

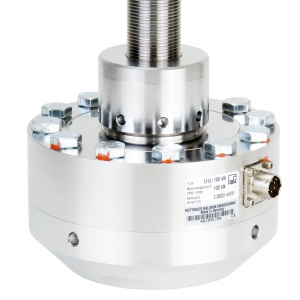

The sister model of the C15, the U15 reference force transducer, is ideal for reference force measurements with tensile and compressive forces.
Highest accuracy class
- Meets the requirements of class 00 per ISO 376 in an exceptionally wide measuring range between 10% and 100% of its capacity for compressive forces
- Eccentricity adjustment: Optimized accuracy even for measurements in different mounting positions or with eccentric force application
- Can be used as a reference transducer for compressive forces up to 1 MN
- Very high output signal of up to 4.5 mV/V; can be adjusted, on request, to 3 mV/V to make full use of the amplifier’s input range
- Excellent signal-to-noise ratio
Precise measurements in an exceptionally wide measuring range
Individually configurable
- Numerous easy-to-order options, TEDS chip, double bridges, rated output adjustment
- Practical accessories available, thrust pieces per ISO376
- On request, we can perform measurement-chain calibrations
- HBM has suitable measuring amplifiers available that are ideally matched to the C15 in terms of the input range
Match the measurement system perfectly to the application – with well-engineered accessories, the right amplifiers, and calibration services
Robust and fast
- High rigidity, low deformation under load, and good dynamic behavior
- Robust due to the IP67 degree of protection and hermetic welding
- Low temperature coefficient of the zero signal and low sensitivity to temperature gradients
Reliably masters dynamic calibration tasks in and outside of the laboratory
